The description of Inside Mode:

*Features*:

*5 Alarm Modes & Real-time Detection*:This monitor features air leakage alarm,high pressure alarm,low pressure alarm,high temperature alarm,and sensor low battery alarm. With an advanced intelligent chip,this system continuously and reliably monitors the tire conditions in real-time and provides both visual and audio alert immediately in case of abnormal tires,greatly enhance driving safety by eliminating a frequent cause of accidents.

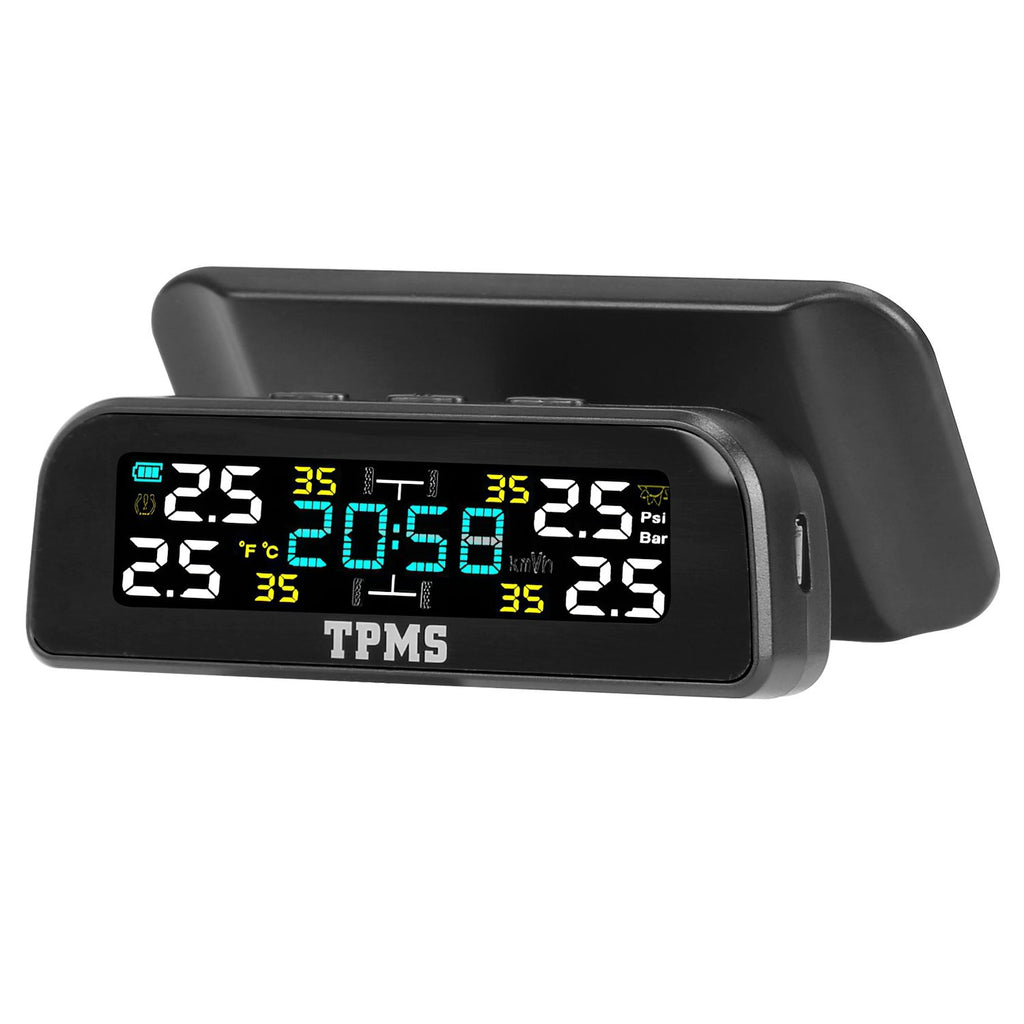

*Digital Screen*:The monitor is equipped with a LCD wide-angle digital screen with bright backlight and clear data. You can easily acquire current tire temperature and pressure and time at just one glance. Moreover,it supports manual brightness adjustment to increase visibility in different conditions,ideal for all day long driving. Pressure unit:PSI/Bar. Temperature unit:℃/℉.
*Solar & USB Rechargeable*:This monitor supports both solar and USB charging. Therefore,there is no need to occupy your cigarette lighter socket continuously as long as the sunlight is available,convenient and environment-friendly.
*Placed on Window Shield or Center Console*:You can either install it on window shield or center console. The device will display all important data on the LCD screen in line with the road,which minimizes the risk of taking your eyes off road while driving for maximum safety.
*Wide Applications*:Applicable to all models and suitable for tire pressure ranging from 0-4.5bar,such as cars,SUV,MPV,Sedan,RV,and etc..

*Specifications*:

​ Product Type: Tire Pressure Monitoring System
Color: Black
Material: ABS
LCD Screen: 7cm/2.8in
Solar Panel: 5V Monocrystalline Silicon
Frequency: 433.92MHZ Battery (Monitor): 1*Built-in 320MA Polymer Lithium
Battery (Sensor): 1*Built-in CR1632 (external); 1*Built-in CR 2450(built-in )
USB Charging Time: 1Hr
Working Voltage: 3.7V-5V
USB Charging Current: ≤250MA
Working Temperature: -30℃~+85℃/-22~185℉
Monitoring Temperature Range: -40℃~+130℃/-40~266℉
Monitoring Pressure Range: 0-4.5bar
Waterproof Rate: IPX7
USB Charging Cable Length: 49cm/19.3in
Monitor Size: 9.8*4.8*4.4cm/3.9*1.9*1.7in
Monitor Weight: 70g/0.15lbs
Package Size: 17.7*13*5cm/7*5.1*2in
Package Weight: 350g/0.77lbs

*Package Lists*:

1*Monitor
4*Sensors
1*USB Charging Cable
1*Pad
1*Accessory Bag
1*User Manual

The Description of Outside Mode:

*Features*:

*5 Alarm Modes & Real-time Detection*:This monitor features air leakage alarm,high pressure alarm,low pressure alarm,high temperature alarm,and sensor low battery alarm. With an advanced intelligent chip,this system continuously and reliably monitors the tire conditions in real-time and provides both visual and audio alert immediately in case of abnormal tires,greatly enhance driving safety by eliminating a frequent cause of accidents.
*Digital Screen*:The monitor is equipped with a LCD wide-angle digital screen with bright backlight and clear data. You can easily acquire current tire temperature and pressure and time at just one glance. Moreover,it supports manual brightness adjustment to increase visibility in different conditions,ideal for all day long driving. Pressure unit:PSI/Bar. Temperature unit:℃/℉.
*Solar & USB Rechargeable*:This monitor supports both solar and USB charging. Therefore,there is no need to occupy your cigarette lighter socket continuously as long as the sunlight is available,convenient and environment-friendly.
*Placed on Window Shield or Center Console*:You can either install it on window shield or center console. The device will display all important data on the LCD screen in line with the road,which minimizes the risk of taking your eyes off road while driving for maximum safety.
*Wide Application*:Applicable to all models and suitable for tire pressure ranging from 0-4.5bar,such as cars,SUV,MPV,Sedan,RV,and etc.. 4 External sensors are quite easy to install with no need to disassemble your tires.
*Specifications*:

​ Product Type: Tire Pressure Monitoring System (outside)
Color: Black
Material: ABS
LCD Screen: 7cm/2.8in
Solar Panel: 5V Monocrystalline Silicon
Frequency: 433.92MHZ Battery (Monitor): 1*Built-in 320MA Polymer Lithium
Battery (Sensor): 1*Built-in CR1632 (external); 1*Built-in CR 2450(internal)
USB Charging Time: 1Hr
Working Voltage: 3.7V-5V
USB Charging Current: ≤250MA
Working Temperature: -30℃~+85℃/-22~185℉
Monitoring Temperature Range: -40℃~+130℃/-40~266℉
Monitoring Pressure Range: 0-4.5Bar
Waterproof Rate: IPX7
USB Charging Cable Length: 49cm/19.3in
Monitor Size: 9.8*4.8*4.4cm/3.9*1.9*1.7in
Monitor Weight: 70g/0.15lbs
Package Size: 17*12*6cm/6.69x4.72x2.36in
Package Weight: 231g/0.50lbs
*Package Lists*:

1*Monitor
4*Sensors
1*USB Charging Cable
1*Pad
1*Accessory Bag
1*User Manual
